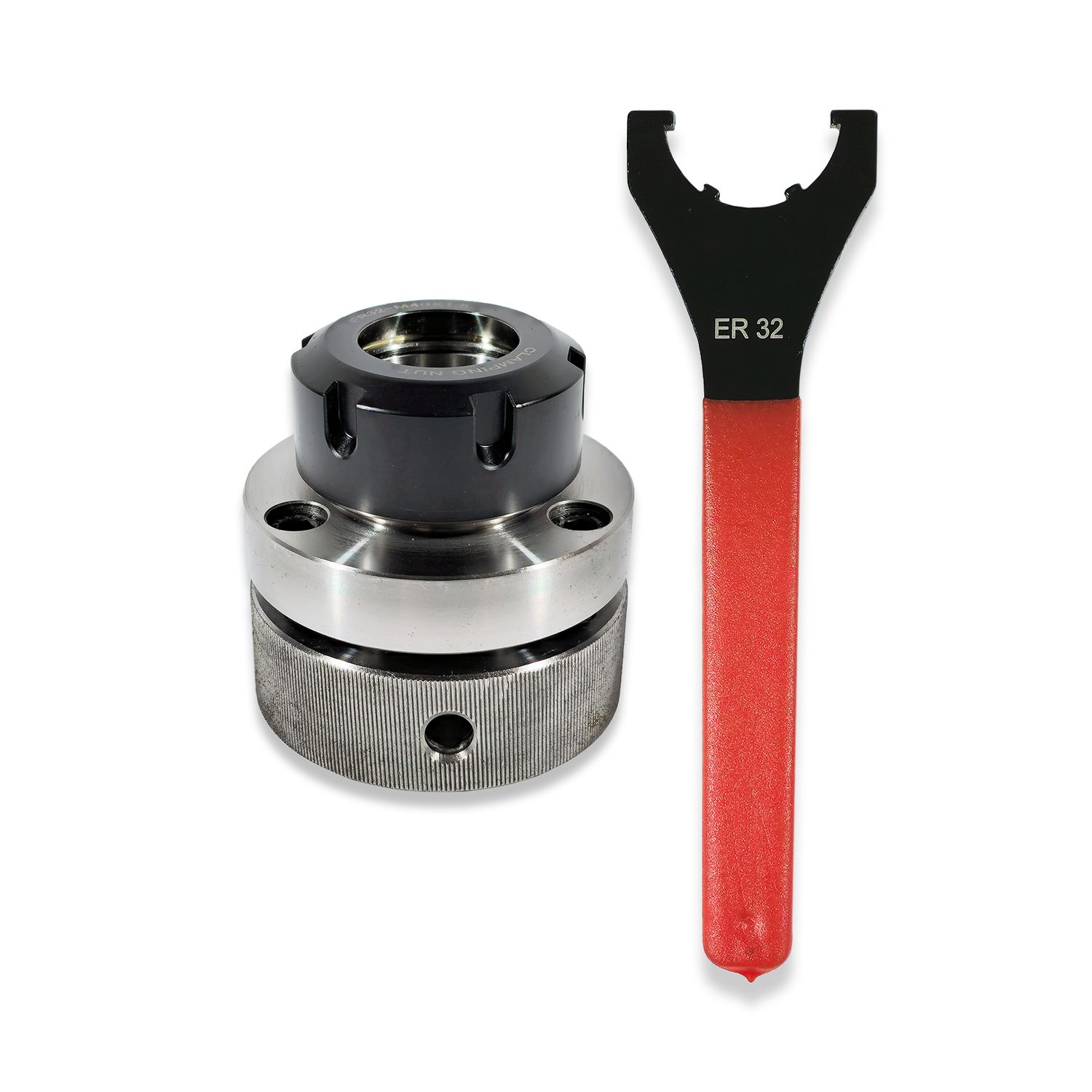

ER32 COLLET NOSE ADAPTOR ASSEMBLY (SMALL BORE) WITH SPANNER 20/294A

Comes complete with collet nose adaptor and backplate, clamping nut with spanner/wrench. To suit older small bore series 10 and 7 lathes with spindle noses bored 2MT and threaded 1.1/8 x 12 TPI Whit.
To acheive best possible accuracy, it is intended that the backplate be fitted to your lathe spindle and a register turned on the outward face to accept and locate the collet nose adaptor. Collet range is 2mm to 20mm.

The collets for this set are our reference number 3440.
