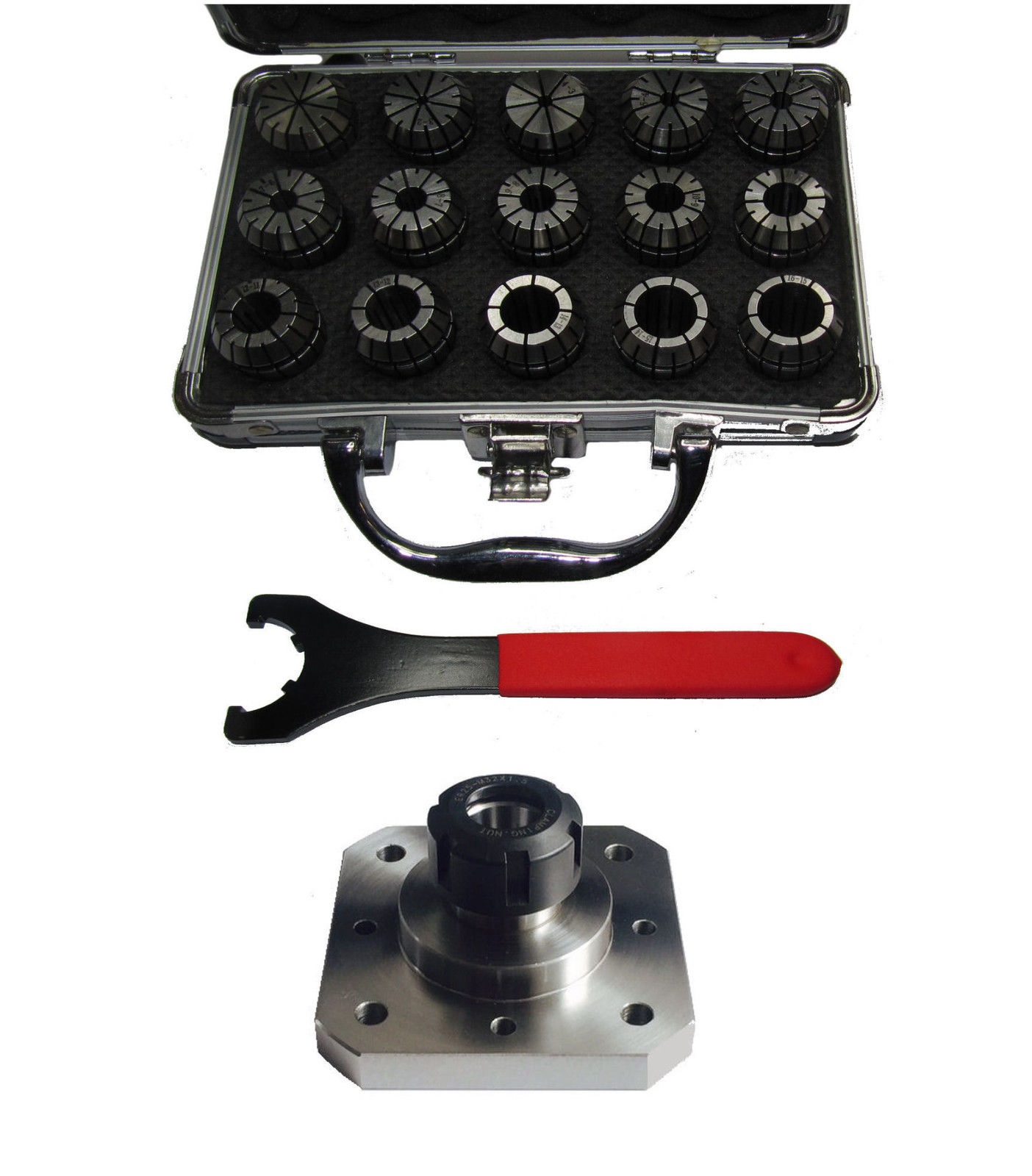

ER25 Base Plate with ER25 Collet Set & Spanner 1-16mm

ER25 COLLET CHUCK BASE PLATE WITH ER25 COLLETS

COLLET CHUCK CAN BE BOLTED ON TO APPARATUS SUCH AS ROTARY TABLES, VERTICAL SLIDES, BORING TABLES OR ANYTHING WITH TEE SLOTS
PLATE DIMENSIONS 100MM SQUARE
THE DISTANCE BETWEEN THE FIXING CENTERS 70MM
SMALL HOLES FOR FIXING ROTARY TABLES PCD 80MM
COLLET CHUCK COMES WITH COLLET NOSE

A FULL SET OF ER25 COLLETS, 15 COLLETS IN THE SET, WILL HOLD WORK FROM 1.5MM TO 16MM.
THESE COLLETS WILL HOLD STRAIGHT SHANK AND THREADED SHANK END/SLOT MILL’S

ER25 COLLET SPANNER FOR THE COLLET NOSE

PLATE WILL COME IN A CARDBOARD BOX
COLLETS WILL COME IN STORAGE CASE
FROM RDGTOOLS
EAN NUMBER 5056685101254
