Please note only Genuine Myford Products will be sold on this site, No copies or reproductions

Welcome To The Myford Ltd Web Site



This site will keep growing, With new products being added daily, All Fittings and Fixtures coming soon!


"Myford Spares Counter" Is available ONLINE, with FREE UK SHIPPING Collection of parts now available in our NEW SHOWROOM, open from 9am - 4pm, Mon - Fri!





"USED MYFORD LATHES WANTED"
Please give us a ring or email to discuss, Please ask for Andrea.
We also clear warehouses and workshops

The Harrogate Show

We will be attending the Harrogate Model Engineering Exhibition in May. If you have anything you would like us to bring with us, please let us know and you can pay and collect at the show. We will be taking a variety of popular spares and accessories, but cannot take everything. This way, you can ensure we will have the parts you want.





Please email us at myfordinfo@aol.com
Tel 00 44 1422 885766

Myford Ltd, 2 Richmond House, Caldene Business Park, Mytholmroyd nr Hebden Bridge, West Yorkshire, England, HX75QJ



FREE UK SHIPPING
Excludes the Highlands and islands
Myford Ltd is now free postage excluding the islands postcodes BT, IM, JE, GY.
and the scottish highlands/borders HS, PA20 +, PH20 +, ZE, IV 1-29 AND IV34 +, and KW
Shipping to the Highlands / Islands and Northern Ireland is now only £8.50 upto 30kg
Belguim, Spain, Netherlands, France, Germany, Ireland, Luxumbourg, Denmark. (£9.50 for up to 31kg Parcel).
Greece 1-30kg: £33.00
Austria, Croatia, Czech Republic, Estonia, Finland, Hungary, Italy, Poland, Portugal, Slovak Republic, Slovenia and Sweden, 1-30kg: £17.50
Great new rates for New Zealand, Australia and South Africa
Fully insured and trackable on-line.


New Products

MICRO SENSITIVE DRILLING ATTACHMENT 2MT

MICRO SENSITIVE DRILLING ATTACHMENT 2MT

183.23

Fitted 0.3 - 4mm Drill Chuck with 2MT Arbour
Box 525
find out more

SUPER 7 RACK OPERATED TAILSTOCK ATTACHMENT - METRIC

SUPER 7 RACK OPERATED TAILSTOCK ATTACHMENT - METRIC

320.00

This is suitable for Super 7, ML7-R and 254 Myford lathes (NOT for ML7 or Series 10 lathes).
It is intended for use with drilling, reaming and tapping.
Max stroke for Series 7 lathes: 94mm
Max stroke for 254 lathes: 100mm
This attachment includes the tailstock barrel, and lever attachment (at the left hand side of the tailstock casting in the picture to the left)
PLEASE NOTE - THIS ITEM DOES NOT INCLUDE THE TAILSTOCK BODY IN THE PICTURE, JUST THE RACK OPERATED ATTACHMENT TO USE IN CONJUNCTION WITH YOUR EXISTING TAILSTOCK
find out more

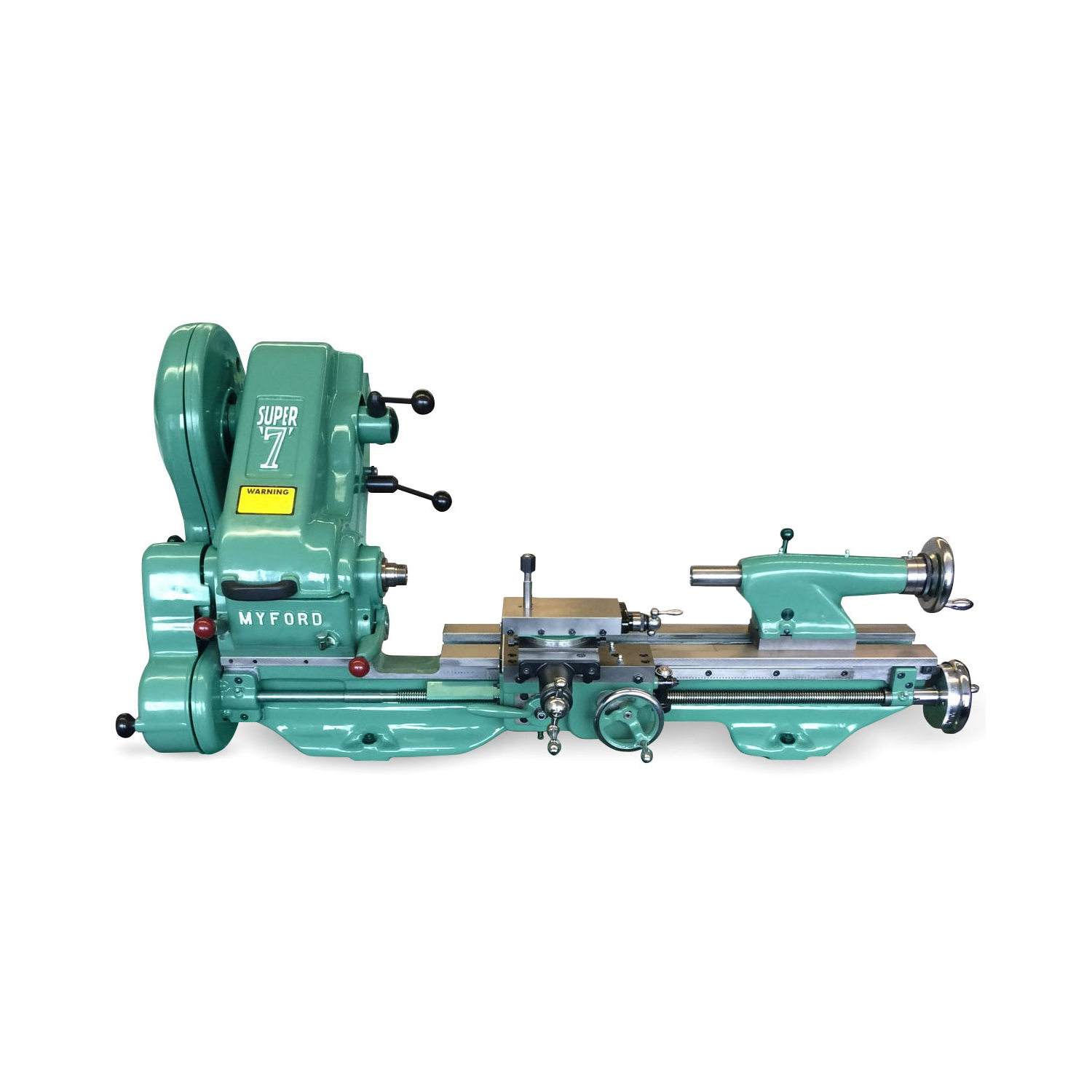

USED LONG BED SUPER 7 LATHE - SKL154250

USED LONG BED SUPER 7 LATHE - SKL154250

This imperial Super 7 lathe comes fitted to a cabinet, with drip tray and raising blocks.

It has been stored in a temperature controlled workshop, and has been well-maintained, yet hardly used. It has had no refurbishment done to it (not even touching up with paint). It has been checked over by our resident engineer and is in excellent condition.

It is a long bed Super 7 (31" between centres), making it ideal for instrument makers and gunsmiths.

This lathe comes fitted to an imperial quick change gearbox, which, when used in conjunction with the 8TPI leadscrew, gives 24 imperial/inch threads, and 24 feeds. A thread dial indicator is fitted to the apron. (for metric, BA, threads and odd pitches, the metric conversion kit will be required)

The carriage features power cross feed (facing), a tee-slotted cross slide, and the top slide swivels 360 degrees. Both top slide and cross slide feedscrews are fitted with adjustable micrometer dials.

The tailstock is a self-ejecting type, and the barrel feedscrew has a three start thread to give rapid movement. The barrel is precision bored 2MT. The tailstock body can be set over on its base in either direction to turn long, shallow tapers.

The machine is fitted with a countershaft clutch unit. A plain taper front headstock bearing supports the spindle in radial loading, while a pair of angular contact ball races at the rear provide support for axial loads. The spindle nose is threaded 1 1/8" x 12 TPI. The bullwheel has 60 teeth, 14 speeds, ranging from 27 - 2105 rpm.

STANDARD EQUIPMENT COMPRISES OF:
100mm (4") 3 jaw Pratt Burnerd chuck fitted to a backplate
2MT Soft Centre (for headstock)
2MT Hard Centre (for tailstock)
Catch Plate with Driver Peg
Thread Dial Indicator (fitted)
Long Bed Lathe Cover
Oil Gun
Super 7 Installation and Instruction Manual
Quick Change Gearbox



£5995 + VAT


find out more

COMBINATION SET MW520-01

COMBINATION SET  MW520-01

85.68

Three measuring heads are attached to the stainless steel ruler, allowing versatile measurements on various types of work pieces
• Square head, protactor head and centre head
• For various measuring and marking applications
• Hardened and ground slide ways
• Stainless steel rule with engraved graduations
0 - 180 DEGREES
find out more

0-6"/0-150mm FRACTION DIGITRONIC CALIPER MW110-15DFC

0-6

52.20

Reads all 3 (metric / imperial and fraction)
Extra large, easy-to-read display
• High measuring speed: 120" per second
• Read and convert in inch, metric and fractions
• Stainless steelframe with extra smooth movements
• CR2032 battery
find out more

PRESTO 1.0 - 5.9mm HSS DRILL SET (50PC) 09500M50

PRESTO 1.0 - 5.9mm HSS DRILL SET (50PC) 09500M50

56.16

Sizes in 0.1mm increments
HSS P1 Steam Tempered Plus
A Precision top quality set direct from Presto Sheffield
Din 338
Std Helix, Jobber drills
code 09500M50
List price £157.00 + VAT
find out more

M10 x 1.5 HSS MACHINE TAPS (SET OF 3)

M10 x 1.5 HSS MACHINE TAPS (SET OF 3)

28.42

HSS Machine Tap Set (3 Taps)
Quality High Speed Steel as you would expect from Presto Tools
Used for cutting internal threads.
Hand tap sets for tapping in free cutting steel upto 800N/mm2.
The perfect thread form is generated by a combination of effective pitch diameter,
major diameter and chamfer length
find out more

MYFORD QUICK CHANGE TOOLPOST ML7 / SUPER 7 / 254 LATHES 78175

MYFORD QUICK CHANGE TOOLPOST ML7 / SUPER 7 / 254 LATHES  78175

114.00

Comes with toolpost + 2 standard holders, 1 hexagon socket wrench and an allen key
find out more

PRESTO 1.0 - 13mm 'HI-NOX' HSS DRILL SET (25PC) 09502M25

PRESTO 1.0 - 13mm 'HI-NOX' HSS DRILL SET (25PC)  09502M25

82.20

Sizes in 0.5mm increments
Hi-Nox is designed to be used on Austenitic Stainless Steel (Hard Steels)
New Geometry (130 degree point cuts Austenitic Stainless Steel)
Short Flute (Gives maximum rigidity)
Quick Spiral (Gives improved cutting action and swarf control)
Reduced Web Point (Resists work hardening and improves penetration)
Heavier web thickness (withstands high feed rates)
Improved point design (permits 2-3 regrinds without special point thinning)
A Precision top quality set direct from Presto Sheffield
(BS328 Din 338)
Std Helix, Jobber drills
code 09502M25
List price £221.83 + VAT
find out more
